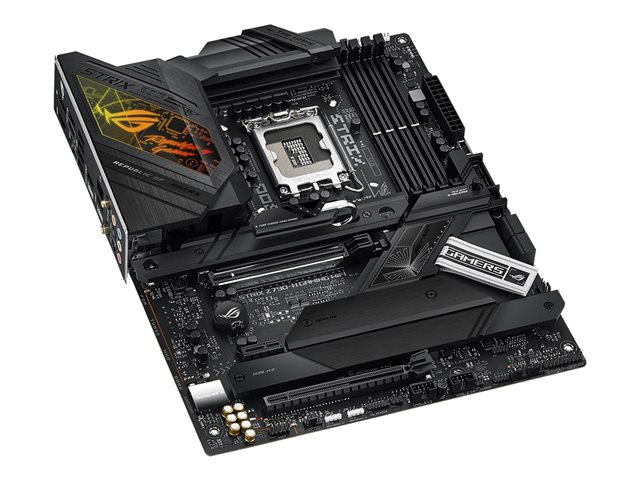

All-round performanceEvery aspect of the Strix Z790-H is intelligently optimized so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.Leading connectivityLightning-fast networking keeps the Strix Z790-H in sync with the outside world for uninterrupted gaming and creation. Furthering immersion is SupremeFX audio, which delivers crystal clear sound.Play in styleBlack PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-H with other products from the diverse ROG Ecosystem to create a fully customized gaming setup that reflects your personal style.AI cooling IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.Two-way AI noise cancellationThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.AI networkingGameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms.
Спецификации
- ПроцесорIntel
- Сокет на процесораLGA1700 Socket
- ЧипсетIntel Z790
- Макс. брой инсталирани процесори1
- Максимално количество на инсталирана памет128 GB
- Тип паметDDR
- Скорост/честота на паметта4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
- Предлага метод за проверка за грешкиNon-ECC, on-die ECC
- Интерфейси1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 2 x USB 2.0 4 x USB 3.2 Gen 1 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 1 x SPDIF out 1 x audio line-out - mini-jack 1 x LAN (2.5Gigabit Ethernet) 2 x aerial
- Вградено аудиоHD Audio (8-channel)
- Аудио кодекSupremeFX (S1220A)
- Слотове1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
- Интерфейс Serial ATASATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
- Поддръжка на RAIDIntel Rapid Storage Technology
- Вграден LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
- Ширина30.5 cm
- Дълбочина24.4 cm
- ДругиIntel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, Savitech SV3H712 amplifier, SupremeFX Shielding technology, audio jack detect technology, jack retasking, Gold Plated Audio Hardware, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, PCIe Slot Q-Release, Water Pump Header, BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS EZ DIY, ASUS Aura Sync, CrashFree BIOS 3, Preboot eXecution Environment (PXE), Windows 11 compatible, DIY Friendly Design, 16+1 Phase Power Design, 6 Layer PCB
