Спецификации

Процесор
AMD
Чипсет
AMD X870 Chipset
Форм фактор
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Гаранция, месеци
36 месеца
Тип памет
DDR
Графична карта
1 x HDMI™ port; 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Интерфейси

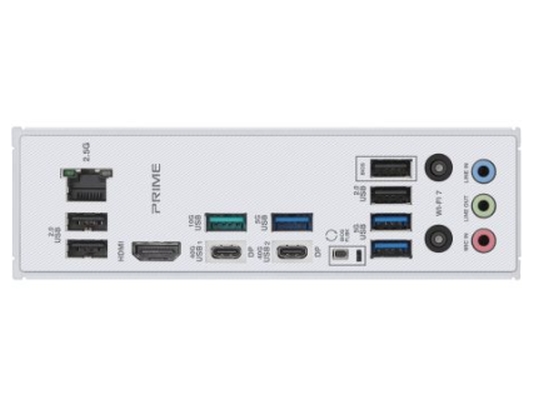

Back Panel I/O Ports; 2 x USB4® (40Gbps) ports (2 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button
Конектори
Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 4 x M.2 slots (Key M); 2 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
Вградено аудио
Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Слотове
AMD Ryzen™ 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD X870 Chipset; 3 x PCIe 4.0 x16 slots (support x1 mode)
Интерфейс Serial ATA
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD X870 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode); 2 x SATA 6Gb/s ports
M.2 слот
4 M.2 slots (Key M)
Вграден LAN
1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
