Спецификации

Процесор
Intel
Чипсет
Intel® Z890 Chipset
Форм фактор
ATX Form Factor 30.5 cm x 24.4 cm
Гаранция, месеци
36 месеца
Тип памет
DDR
Графична карта
1 x DisplayPort**;1 x HDMI™ port***;1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output******;* Graphics specifications may vary between CPU types;** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;*** Supports 4K@60Hz as specified in HDMI 2.1;****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.;***** In DP alt mode, supports up to UHBR20.;****** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;******* VGA resolution support depends on processors' or graphic cards' resolution.;********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Интерфейси

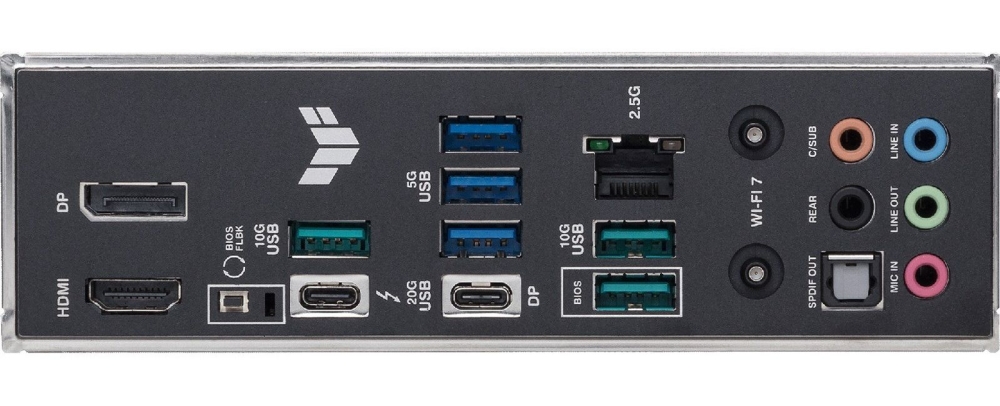

Thunderbolt 4 USB Type-C, USB 20Gbps port, 3 USB 10Gbps ports, 3 USB 5Gbps ports, DisplayPort, HDMI, Intel 2.5Gb Ethernet port, 5 Audio jacks, Optical S/PDIF out, BIOS FlashBack button
Конектори
Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connector;Storage Related;4 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 20Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front System Panel header;1 x Thunderbolt™ (USB4®) header
Вградено аудио
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback*;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit;* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Слотове
Intel® Core™ Ultra Processors(Series 2)*;-1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x4 slot;-2 x PCIe 4.0 x1 slots
Интерфейс Serial ATA
Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors(Series 2)*;-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;-M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
M.2 слот
4 M.2 slots (Key M)
Вграден LAN
1 x Intel® 2.5Gb Ethernet TUF LANGuard
