Спецификации

Процесор
AMD
Чипсет
AMD X870 Chipset
Форм фактор
ATX Form Factor, 30.5 cm x 24.4 cm
Гаранция, месеци
36 месеца
Тип памет
DDR
Графична карта
1 x HDMI™ port;2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Интерфейси

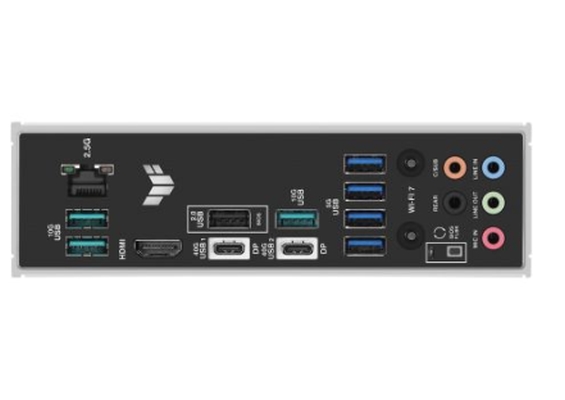

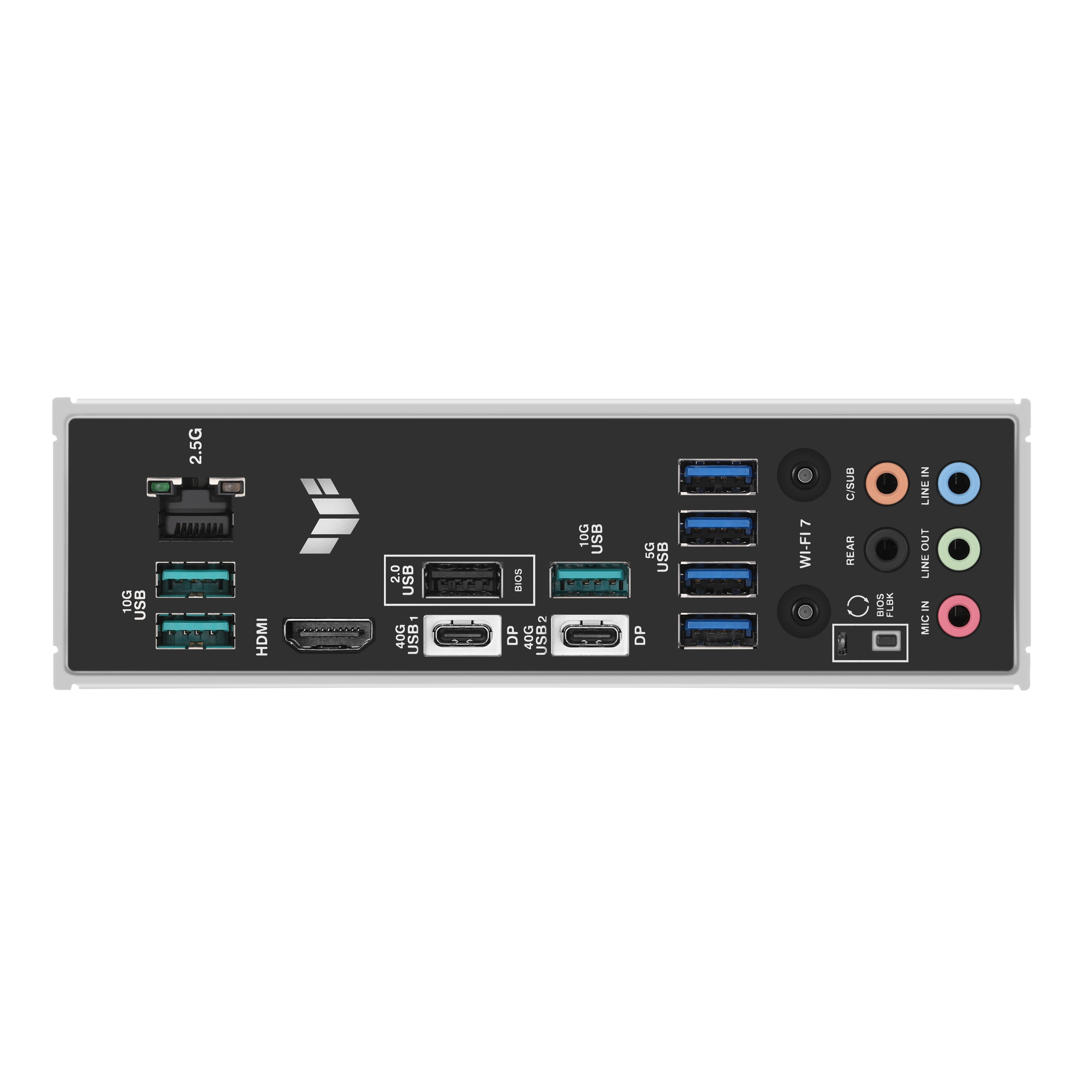

2 USB4 (40Gbps), 3 USB (10Gbps), 4 USB (5Gbps), USB 2.0, HDMI, 5 Audio jacks
Конектори
Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;1 x W_PUMP+ header;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;4 x M.2 slots (Key M);2 x SATA 6Gb/s ports;USB;1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front System Panel header;1 x Thermal Sensor header
Вградено аудио
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit
Слотове
AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD X870 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
Интерфейс Serial ATA
Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot not support;AMD X870 Chipset;M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);2 x SATA 6Gb/s ports
M.2 слот
4 M.2 slots (Key M)
Вграден LAN
1 x Realtek 2.5Gb Ethernet;TUF LANGuard
