Triple MonitorGraphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.Solid Capacitor DesignASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.ELNA Audio CapsWho says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.Digi PowerThis motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

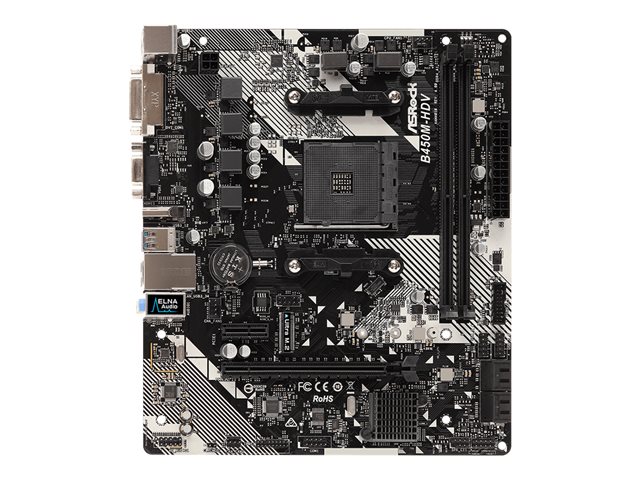

Спецификации
- ПроцесорAMD
- Сокет на процесораSocket AM4
- ЧипсетAMD B450
- Форм факторMicro ATX
- Гаранция, месеци24 месеца
- Макс. брой инсталирани процесори1
- Максимално количество на инсталирана памет32 GB
- Тип паметDDR4
- Скорост/честота на паметта2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz (O.C.)
- Слотове памет2
- Форм фактор на паметтаDIMM 288-pin
- Предлага метод за проверка за грешкиNon-ECC, ECC
- Характеристики на паметтаTwo DDR Channels
Небуферирана
Dual Rank
Single Rank
XMP - Интерфейси1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB 2.0 4 x USB 3.1 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack
- PS/21
- VGA1 (15-pin D-sub)
- DVI1 (DVI-D)
- USB 3.14 (USB 3.1 (type A))
- Вградено аудиоHD Audio (8-channel)
- Аудио кодекRealtek ALC887
- Аудио интерфейс3 (3.5 мм мини жак)
- Слотове1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) 1 x PCIe 2.0 x1
- Слотове PCI-E X161
- Слотове PCI-E X11
- Интерфейс Serial ATASATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2
- Вграден LANRealtek RTL8111H
- Тип захранващ конектор24+4 pin
- Височина201 мм
- Ширина23 cm
- Дълбочина20.1 cm
- ДругиASRock Instant Flash, All-Solid Capacitor motherboard Design, HDCP compliant, 15µ Gold Contact, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, AMD StoreMI technology
