Спецификации

Процесор
Intel
Чипсет
Intel® H610 Chipset
Форм фактор
M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Гаранция, месеци
36 месеца
Тип памет
DDR4
Графична карта
1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
Интерфейси

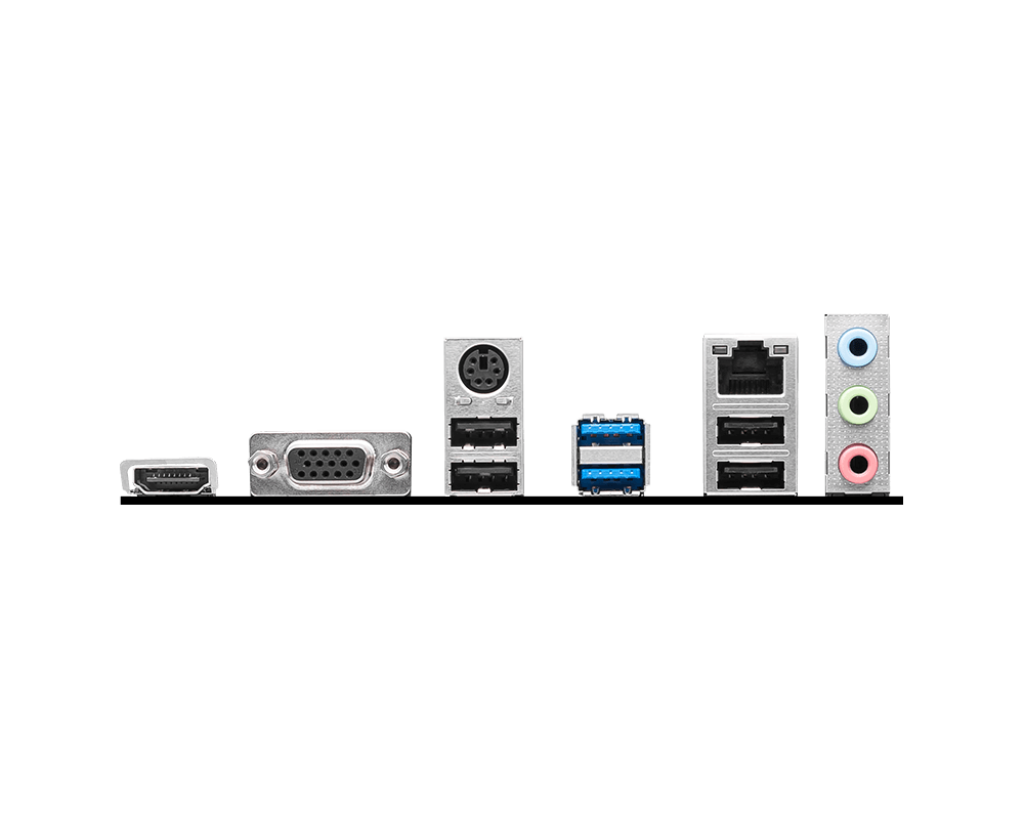

HDMI™; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0
Конектори
4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper
VGA
Да
Вградено аудио
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Слотове
1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From H610 chipset); Supports PCIe 3.0 x1
Вграден LAN
1x Realtek® RTL8111H 1Gbps LAN controller
