ASRock Inc., established in 2002, targets at entry to mainstream segment of MB business, is an energetic company with the combination of technology and humanity. Devoting efforts to bring customers the innovative and reliable motherboards with the design concept of 3C, "Creative, Considerate, Cost-effective", ASRock has successfully established a well-known leading brand of the best price-performance motherboard in the industry. ASRock products' high recognition stems from company’s devotion to bring the most cost-performance products to users. Besides creative features and solid products, ASRock engineers also pay special attention to EMI, thermal, acoustics and details to achieve complete customer satisfaction. In addition to price-performance, creative and considerate features, ASRock also pay special on the issue of eco-environmental protection with the released of ROHS products and energy saving functions to save the environment. To succeed in this ultra-competitive industry, ASRock provides great products with speed-to-market, cost and service to customers.
Спецификации
- ПроцесорAMD
- Сокет на процесораSocket AM4
- ЧипсетAMD A520
- Форм факторMicro ATX
- Гаранция, месеци36 месеца
- Макс. брой инсталирани процесори1
- Максимално количество на инсталирана памет64 GB
- Тип паметDDR4
- Скорост/честота на паметта2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2933MHz(PC4-23400)
3200MHz(PC4-25600) - Слотове памет2
- Форм фактор на паметтаDIMM 288-pin
- Предлага метод за проверка за грешкиNon-ECC
- Характеристики на паметтаНебуферирана
XMP - Графична карта- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady
- Конектори- 1 x SPI TPM Header; - 1 x COM Port Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

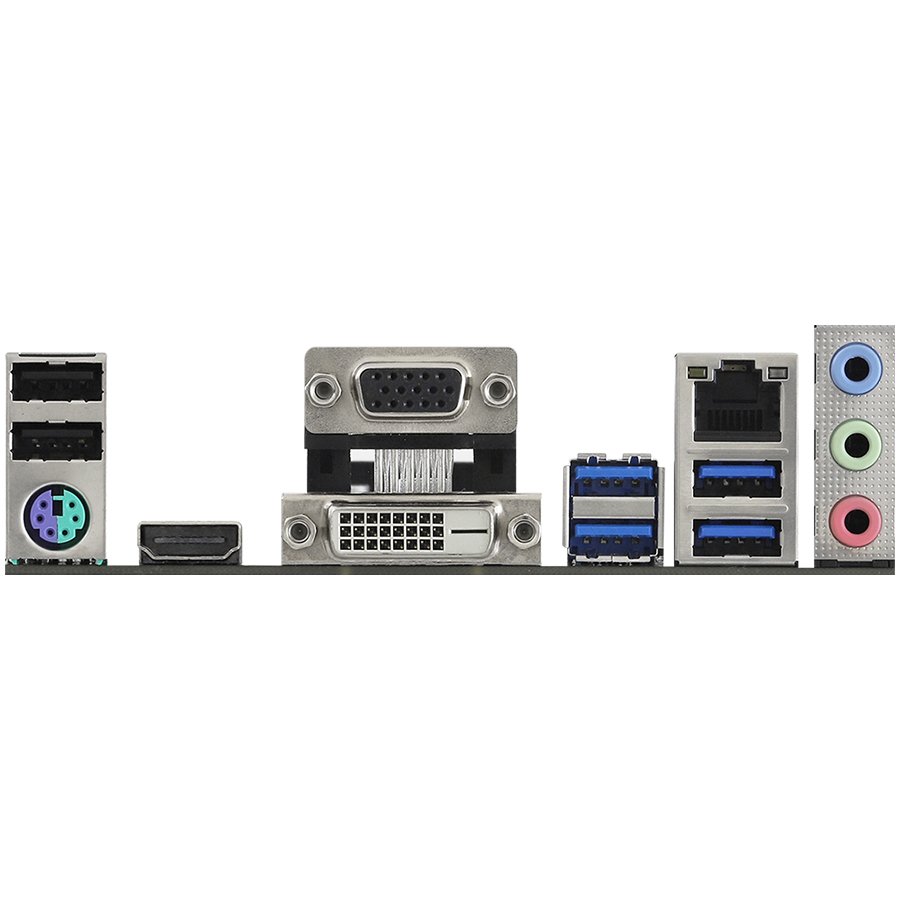

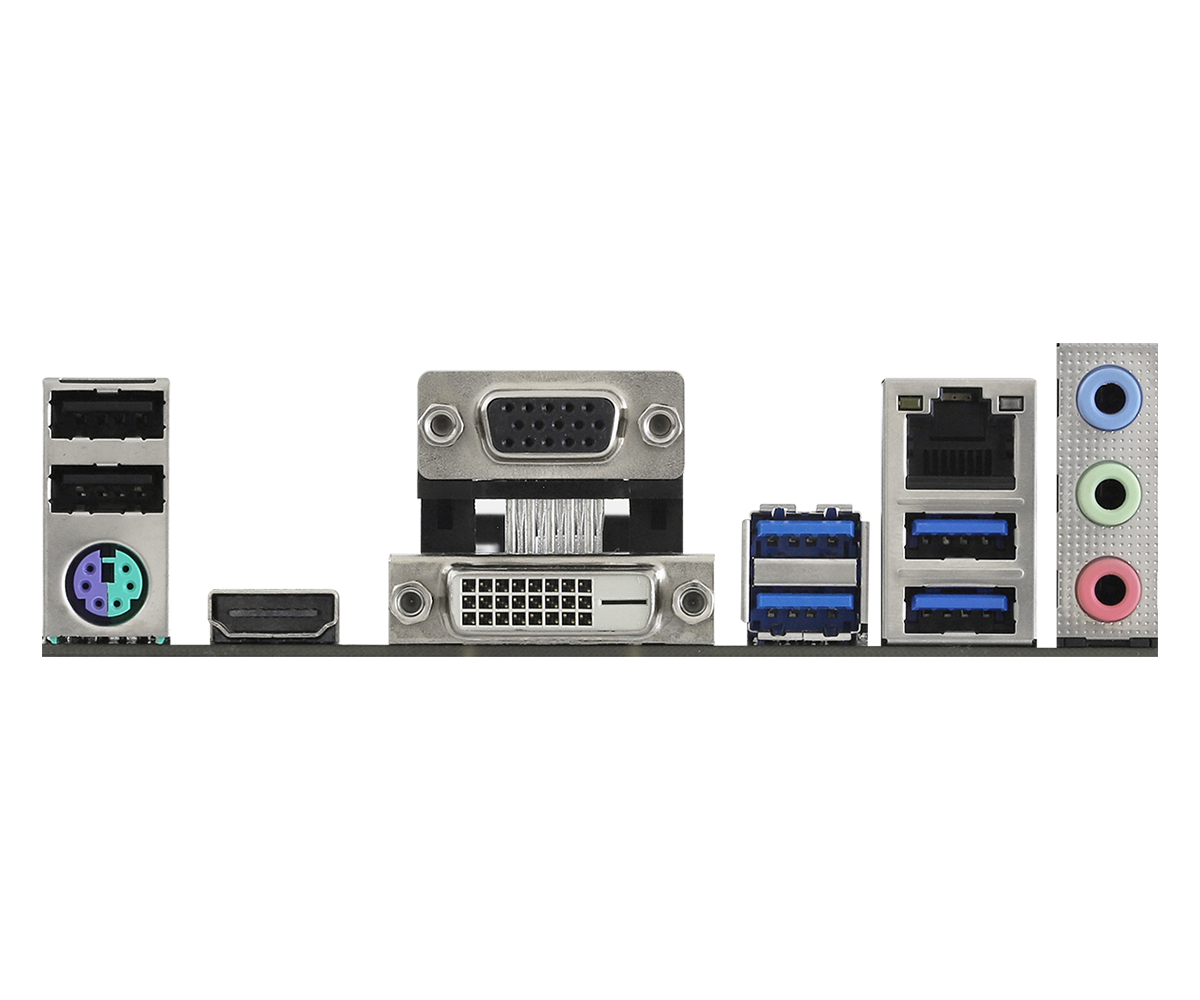

- PS/21
- VGA1 (15-pin D-sub)
- DVI1 (DVI-D)
- USB 3.24 (USB 3.2 (type A))
- Вградено аудиоRealtek ALC887
- Аудио интерфейс3 (3.5 мм мини жак)
- Слотове- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; - 1 x PCI Express 3.0 x1 Slot
- Слотове PCI-E X161
- Слотове PCI-E X11
- Интерфейс Serial ATA- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- Вграден LANRealtek RTL8111H
- Тип захранващ конектор24+8 pin
- Височина201 мм
- Ширина230 мм
