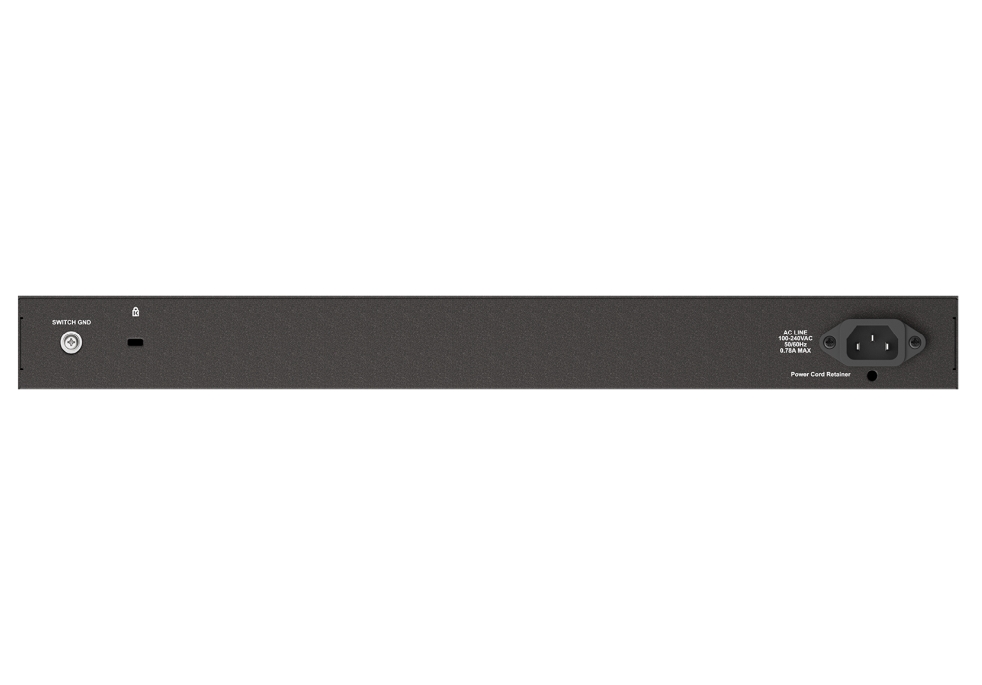

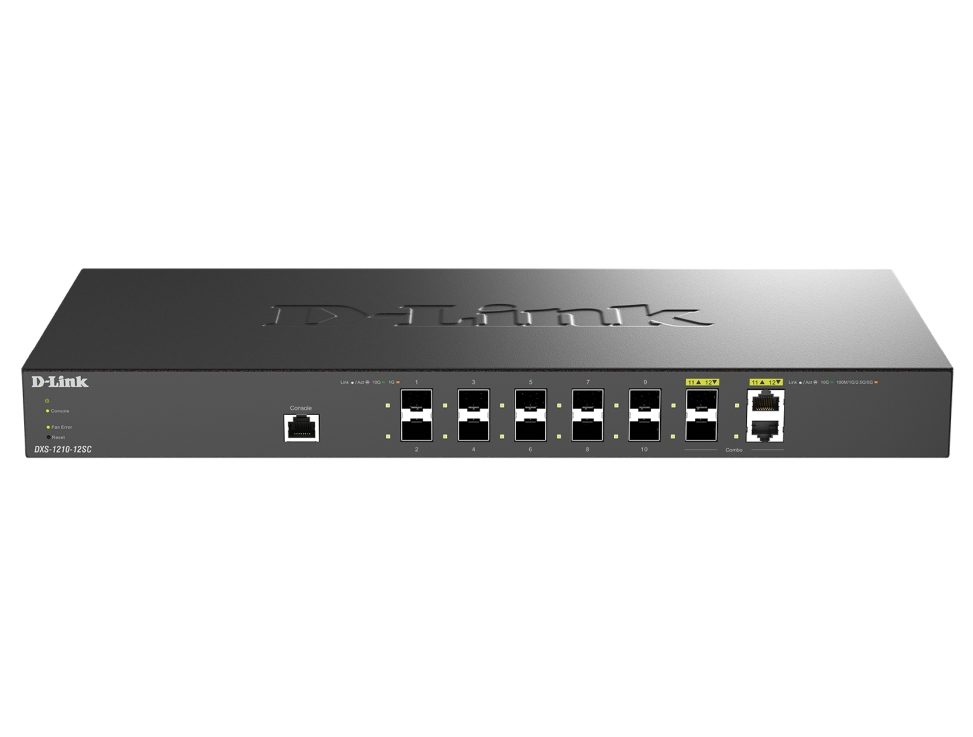

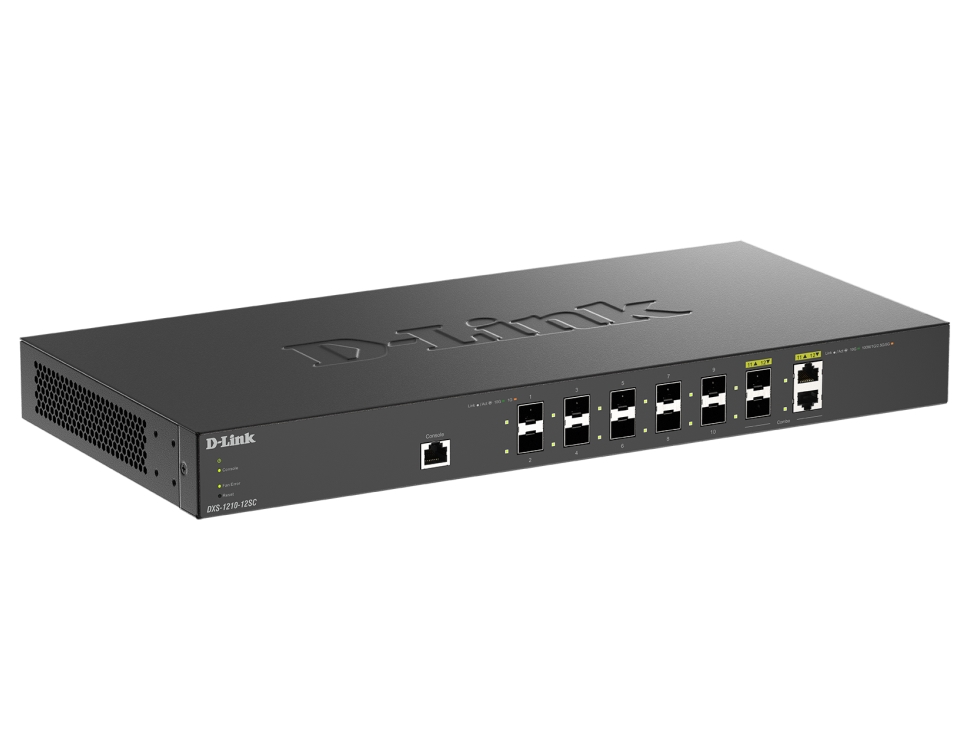

D-Link 12 Port Smart Managed Switch including 10x10 SFP+ ports & 2 x Combo 10GBase-T/SFP+ uplink...

D-Link 12 Port Smart Managed Switch... - 0

D-Link 12 Port Smart Managed Switch... - 1

D-Link 12 Port Smart Managed Switch... - 2

Спецификации

Суич, тип
Fixed Port
Общ брой портове
12
Основни портове, тип
10x10GE SFP
Power Over Ethernet (PoE)
No
Гаранция, м.
99 месеца
Uplink портове
2 dual personality
Свободни (10GB) слотове
No
Управляем (Managed)
Web-based GUI; D-Link Network Assistant Utility; Full CLI; Telnet Server; TFTP Client; Configurable MDI/MDIX; SNMP (Supports v1/v2c/v3); SNMP Trap; Smart Wizard; LLDP; LLDP-MED; System Log; BootP/DHCP Client; SNTP; ICMP v6; IPv4/v6 Dual Stack;Trusted Host
Паралелна работа (Stackable)
No
Fans
yes
Захранване
Internal power supply: 100 to 240 VAC
Routing
Layer 3 Lite
Памет (Flash, RAM)
-
Капацитет за маршрутизиране/превключване, Gbps
240 Gbps
Пропускателна способност, Mpps
178.56 Mpps
MAC адреси
16000 MAC address table size
VLAN (брой, стандарти)
802.1Q VLAN, Port-based VLAN, 4K VLAN Groups, Configurable VID 1-4094, Voice VLAN, Auto Surveillance VLAN, Asymmetric VLAN
QoS
802.1p; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR), Deficit Round Robin (DRR), Weighted Deficit Round Robin (WDRR), Strict + WDRR; Bandwidth Control - Port-based (Ingress/Egress, min. granularity 64 Kbps)
L2 мрежови стандарти
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1p
L3 мрежови стандарти
Default Route, Static Route: Max. 64 IPv4/Pv6 entries
IPv6 functionality
IPv6 Traffic Class, IPv6 Flow Label, IPv6 Neighbor Discovery (ND)
Сигурност
Broadcast/Multicast/Unicast Storm Control; D-Link Safeguard Engine; DHCP Server Screening; IP-MAC-Port Binding; Traffic Segmentation; SSL (Support v1/v2/v3, Support IPv4/IPv6); DoS Attack Prevention; Port Security; Duplicate Address Detection
