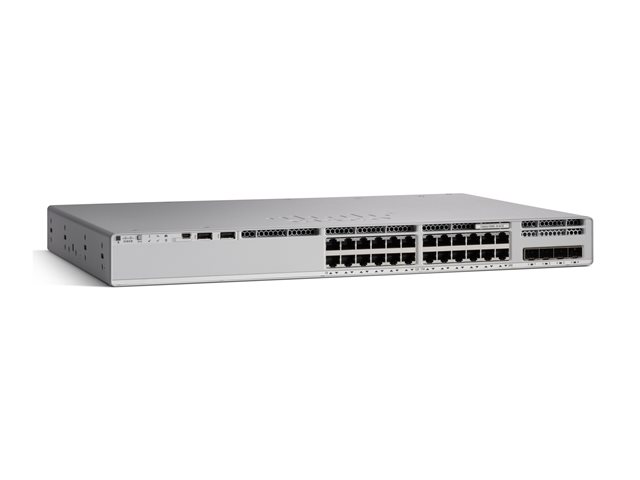

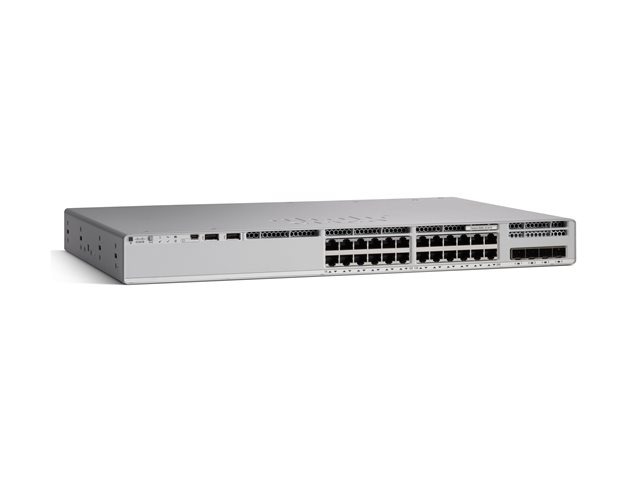

CONFIGURATION24 x 10/100/1000M Ethernet, 4 x 1G Small Form-factor Pluggable (SFP) uplinksIT SIMPLIFIEDCatalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automationSECUREEnhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switchALWAYS-ONDifferentiated resiliency with Field-Replaceable Units (FRU) and redundant power supplies, redundant fans, 80 Gbps backplane stacking, and layer 3 supportMANAGEMENTChoice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard
Спецификации
- Суич, типFixed Port
- Общ брой портове28
- Основни портове, тип24x10/100/1000Base-T
- Power Over Ethernet (PoE)No
- Гаранция, м.99 месеца
- Uplink портове4x10/100/1000Base-T
- Свободни (10GB) слотовеNo
- Управляем (Managed)SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
- Паралелна работа (Stackable)Cisco StackWise-80 stacking ports: copper-based Cisco StackWise cabling, Stacking hardware (C9200L-STACK-KIT=), Supported stack members: Other C9200L models with same license level (8 Number of members)
- FansFixed redundant
- ЗахранванеDual field-replaceable power supplies, Default primary AC power supply: PWR-C5-125WAC
- RoutingLayer 3 Advanced
- Памет (Flash, RAM)Flash memory: 4 GB; RAM: 2 GB DRAM
- Капацитет за маршрутизиране/превключване, Gbps56 Gbps
- Пропускателна способност, Mpps83.33 Mpps
- MAC адреси16000 MAC address
- VLAN (брой, стандарти)VLAN IDs: 1024; IEEE 802.1Q VLAN
- QoSGranular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
- L2 мрежови стандартиIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x
- L3 мрежови стандартиIP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
- IPv6 functionalityIPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting
- СигурностEnhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- ДругиЗадължителен е минимум 3-годишен лиценз DNA Essentials.
- TypeManaged
- Managed PortYes
- Ports24
- Network typeGigabit Ethernet
- SFP slots4
- Uplink Base-TYes
- Uplink SFPYes
- Uplink Dual PersonalityYes
- Uplink4x SFP
