Спецификации
- ПроцесорIntel
- ЧипсетIntel® Z890 Express Chipset
- Форм факторATX Form Factor; 30.5cm x 24.4cm
- Гаранция, месеци36 месеца
- Тип паметDDR
- Графична картаIntegrated Graphics Processor-Intel® HD Graphics support;- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs;When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).;When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).;* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.);* Support for DisplayPort 2.1 version and HDCP 2.3;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version.;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time
- ИнтерфейсиCPU;- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel;*Support up to 40Gbps with Thunderbolt devices;*Support up to 20Gbps with USB4 devices;*Support up to 10Gbps with USB 3.2 devices;Chipset;- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;Chipset+USB 3.2 Gen 2x2 Hub;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;Chipset+2 USB 3.2 Gen 1 Hubs;- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers);Chipset+2 USB 2.0 Hubs;- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

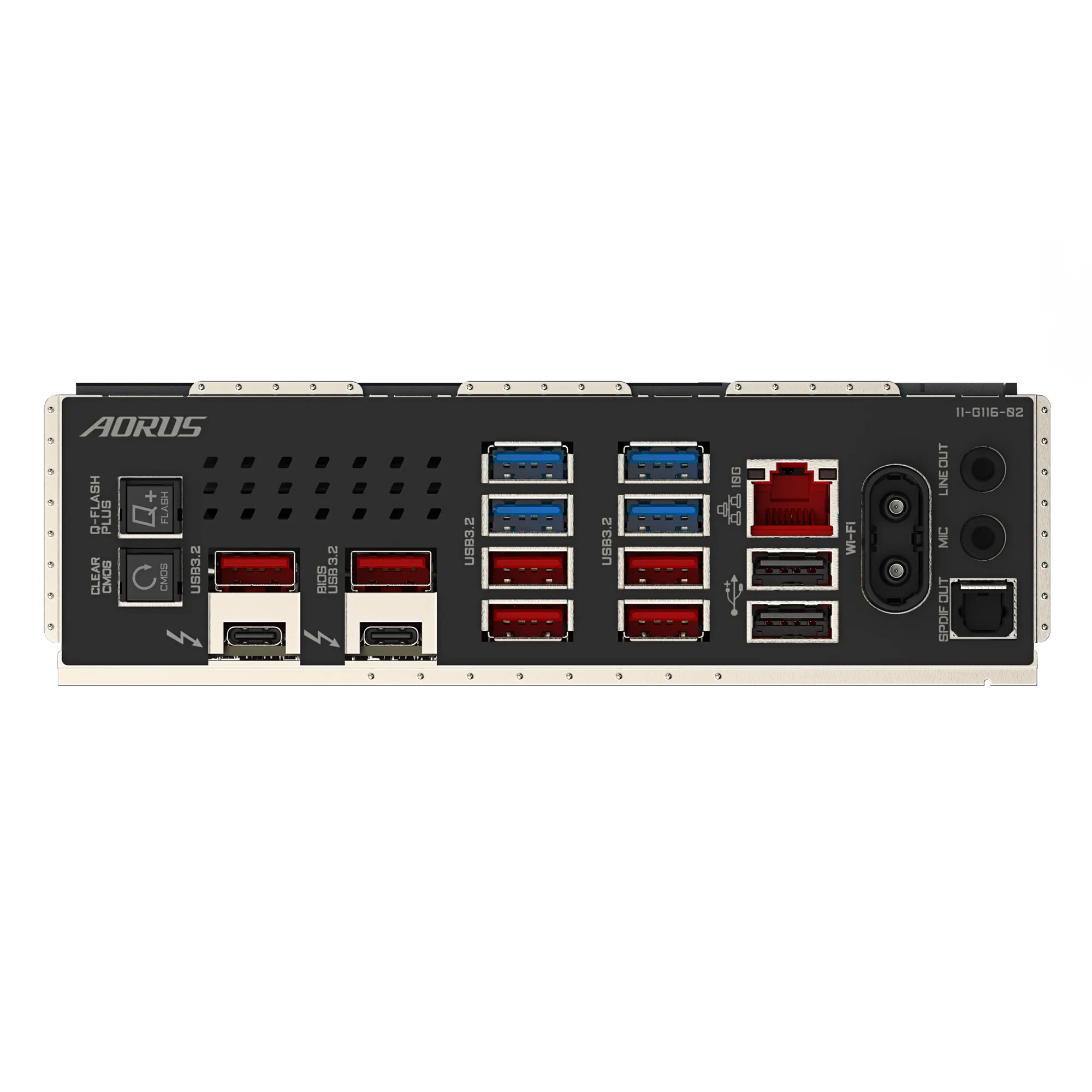

- КонекториiTE® I/O Controller Chip;1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header4 x system fan headers;4 x system fan/water cooling pump headers;4 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;5 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;2 x USB 3.2 Gen 1 headers;2 x USB 2.0/1.1 headers;1 x noise detection header;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x HDMI port (Note);1 x power button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;2 x temperature sensor headers;Voltage Measurement Points;(Note) Actual support may vary by CPU;Back Panel Connectors: 1 x Q-Flash Plus button;1 x Clear CMOS button;2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports);6 x USB 3.2 Gen 2 Type-A ports (red);4 x USB 3.2 Gen 1 ports;2 x USB 2.0/1.1 por
- Вградено аудиоRealtek® ALC1220 CODEC;* The front panel line out jack supports DSD audio.;ESS ES9118 DAC chip;Support for DTS:X® Ultra;High Definition Audio;2/4/5.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
- СлотовеCPU;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.;Chipset;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
- Интерфейс Serial ATACPU;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU);Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Вграден LANMarvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
