Спецификации

Процесор
Intel
Сокет на процесора
LGA1851 Socket
Чипсет
Intel Z890
Форм фактор
ATX Form Factor
Гаранция, месеци
36 месеца
Макс. брой инсталирани процесори
1
Максимално количество на инсталирана памет
192 GB
Тип памет
DDR
Скорост/честота на паметта
4533 MHz (O.C.)
Предлага метод за проверка за грешки
Non-ECC, on-die ECC
Графична карта
1 x DisplayPort; 1 x HDMI™ port; 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs; - Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

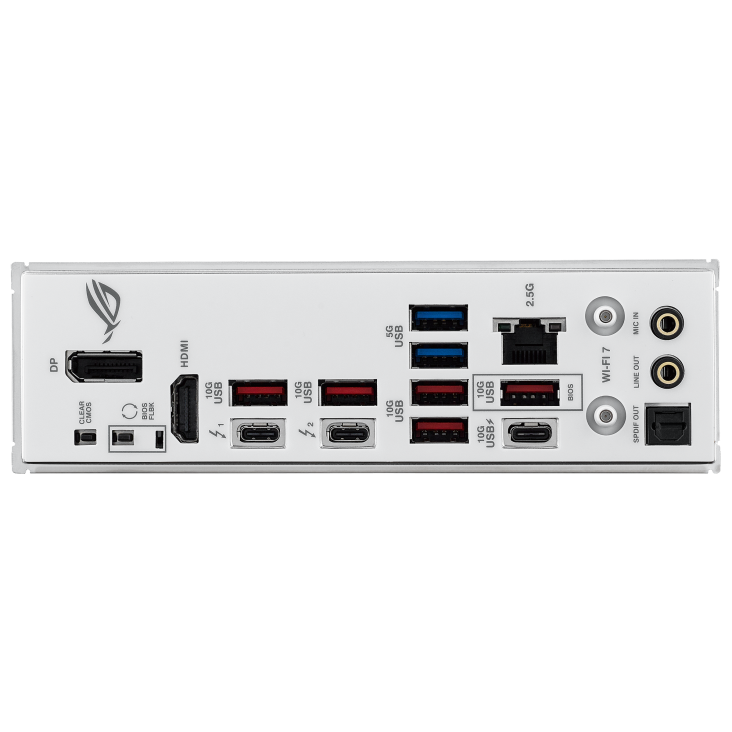

Интерфейси

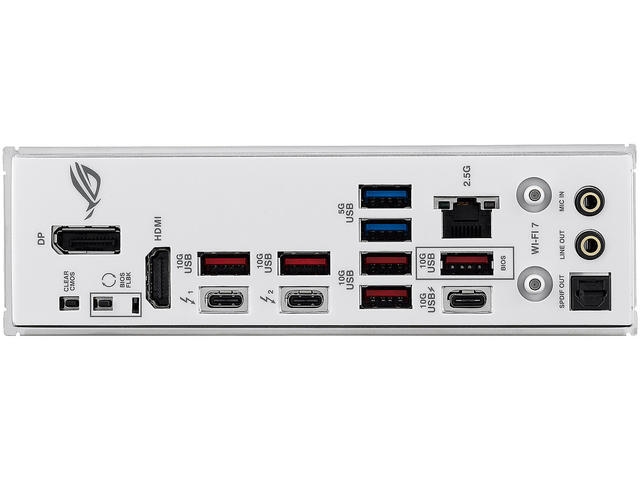

2 x Thunderbolt 4/DisplayPort/USB4 5 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x HDMI 1 x LAN (5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x aerial 1 x DisplayPort 1 x SPDIF out
Конектори
Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 5 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Chassis Intrusion header; 1 x CPU Over voltage jumper; 1 x Front Panel Audio header (F_AUDIO); 1 x Start button; 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4®) header
Вградено аудио
HD Audio (8-channel)
Аудио кодек
SupremeFX (ALC4080)
Слотове
1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2280 M.2 slot)
Интерфейс Serial ATA
SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
M.2 слот
5 M.2 slots (Key M)
Вграден LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Ширина
30.5 cm
Дълбочина
24.4 cm
Други
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CUDIMM support, DIY Friendly Design, AI Cooling II, VRM heatsink design, M.2 heatsink, M.2 heatsink backplate, LANGuard, BIOS FlashBack button, Clear CMOS Button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, ASUS SafeSlot, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, BIOS FlashBack LED, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-LED, Q-Slot, CrashFree BIOS 3, Preboot eXecution Environment (PXE), AI Overclocking, AI Networking II, NPU Boost, 18+1+2+2 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III, Polymo Lighting, 8 Layer PCB
