ASROCK B760M-H2/M.2 LGA1700 2xHDMI

Name: ASROCK B760M-H2/M.2 LGA1700 2xHDMI
Brand: ASROCK
SKU: b7efc93c-741a-11f0-aed7-0ab9880948b1
Price: 92 EUR
Availability: InStock

B760M-H2/M.2

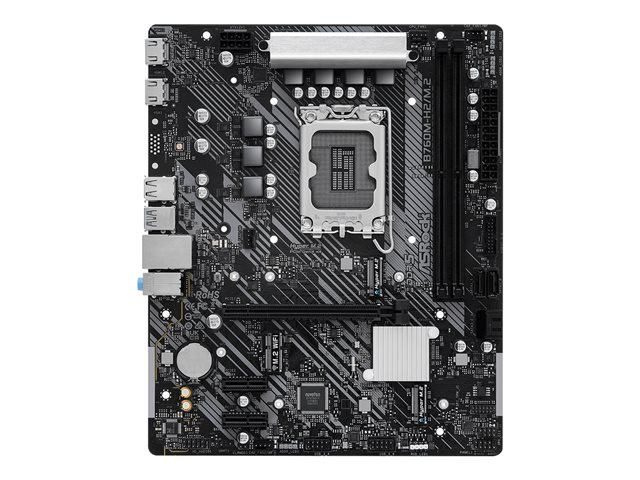

Discover the ASRock B760M-H2/M.2 motherboard, designed to elevate your computing experience. This micro ATX motherboard is compatible with 12th, 13th, and 14th Generation Intel Core processors, ensuring versatility and power for a range of uses from gaming to intensive workloads. With support for DDR5 SDRAM at speeds up to 7200 MHz (O.C.), it provides the bandwidth needed for high-speed data processing and multitasking. The inclusion of 2.5 Gigabit Ethernet offers rapid network connections, reducing lag and improving online interactions. Audio enthusiasts will appreciate the high definition audio powered by the Realtek ALC897 codec, delivering crystal-clear sound. Storage options are abundant, with 4 SATA-600 ports and 2 Hyper M.2 sockets, facilitating quick data access and boot times. The motherboard also features a robust UEFI BIOS with ASRock EZ Mode, making system setup and tuning straightforward and accessible. Whether you're building a new PC or upgrading an existing one, the ASRock B760M-H2/M.2 motherboard offers a solid foundation with its blend of performance, connectivity, and quality.

€92⁰⁰ / 179⁹⁴ лв.

Enhanced connectivityEquipped with a plethora of interfaces including 2 HDMI ports, 4 USB 3.2 Gen 1 ports, and 2 USB 2.0 ports, this motherboard ensures a wide range of connectivity options for various peripherals and devices.High-speed memory supportSupports DDR5 SDRAM technology with speeds up to 7200 MHz (O.C.), enabling faster data transfer rates and improved system performance.Robust audio featuresFeatures high definition audio with an 8-channel Realtek ALC897 codec, providing immersive sound quality for gaming and multimedia experiences.Advanced networkingIncorporates a 2.5 Gigabit Ethernet controller, offering high-speed network connectivity and smooth online gaming and streaming.Efficient storage solutionsIncludes 4 x SATA-600 (RAID) ports and 2 x Hyper M.2 sockets, supporting a variety of storage configurations for faster data access and improved system efficiency.

Спецификации

Процесор
Intel
Сокет на процесора
LGA1700 Socket
Чипсет
Intel B760
Форм фактор
Micro ATX
Гаранция, месеци
24 месеца
Макс. брой инсталирани процесори
1
Максимално количество на инсталирана памет
96 GB
Тип памет
DDR
Скорост/честота на паметта
7200 MHz (O.C.), 6800 MHz (O.C.), 5600 MHz, 5200 MHz
Слотове памет
2
Форм фактор на паметта
DIMM 288-pin
Предлага метод за проверка за грешки
Non-ECC, ECC (operate in non-ECC mode)
Характеристики на паметта
Two DDR Channels
Небуферирана
XMP 3.0
Графична карта
- Intel® Xe Graphics Architecture (Gen 12); - 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
Интерфейси

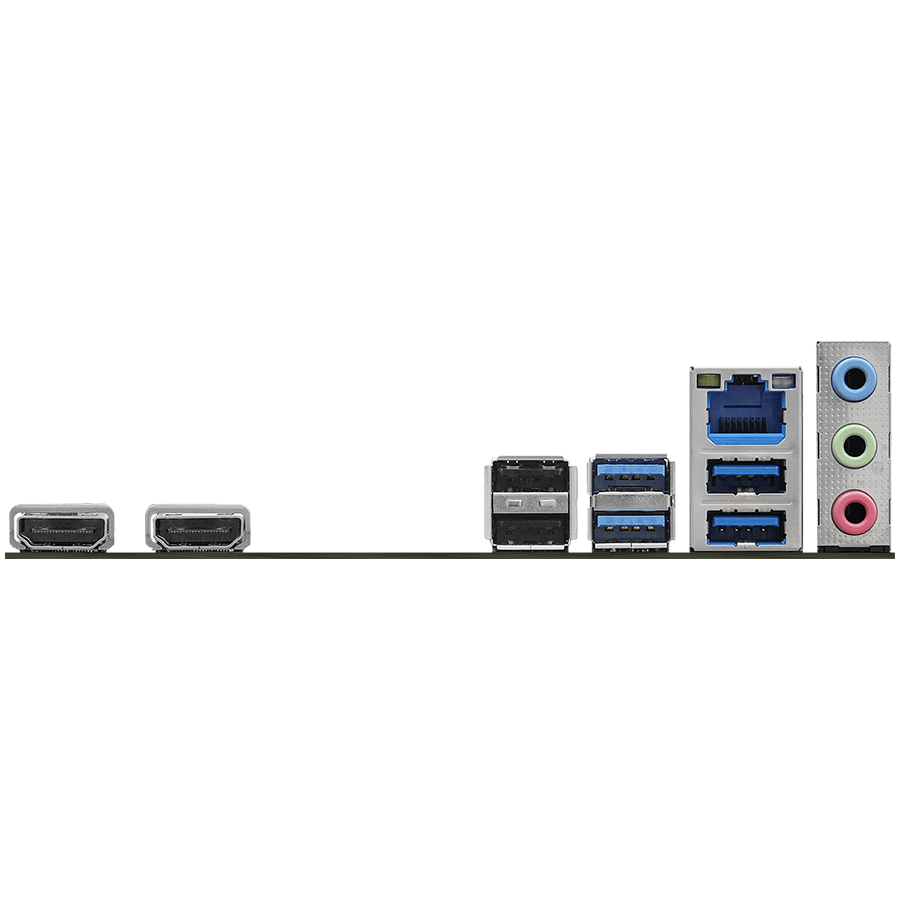

2 x aerial 2 x HDMI 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack
Конектори
- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
USB 3.2
4 (USB 3.2 (type A))
Вградено аудио
HD Audio (8-channel)
Аудио кодек
Realtek ALC897
Аудио интерфейс
3 (3.5 мм мини жак)
Слотове
1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot)
Слотове PCI-E X16
1
Слотове PCI-E X1
2
Интерфейс Serial ATA
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x Hyper M.2
Вграден LAN
Dragon RTL8125BG
Тип захранващ конектор
24+8 pin
Височина
201 мм
Ширина
24.4 cm
Дълбочина
20.1 cm
Други
5+1+1 Phase Power Design, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ESD Protection, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI
