Задължителен е минимум 3-годишен лиценз DNA Advantage!

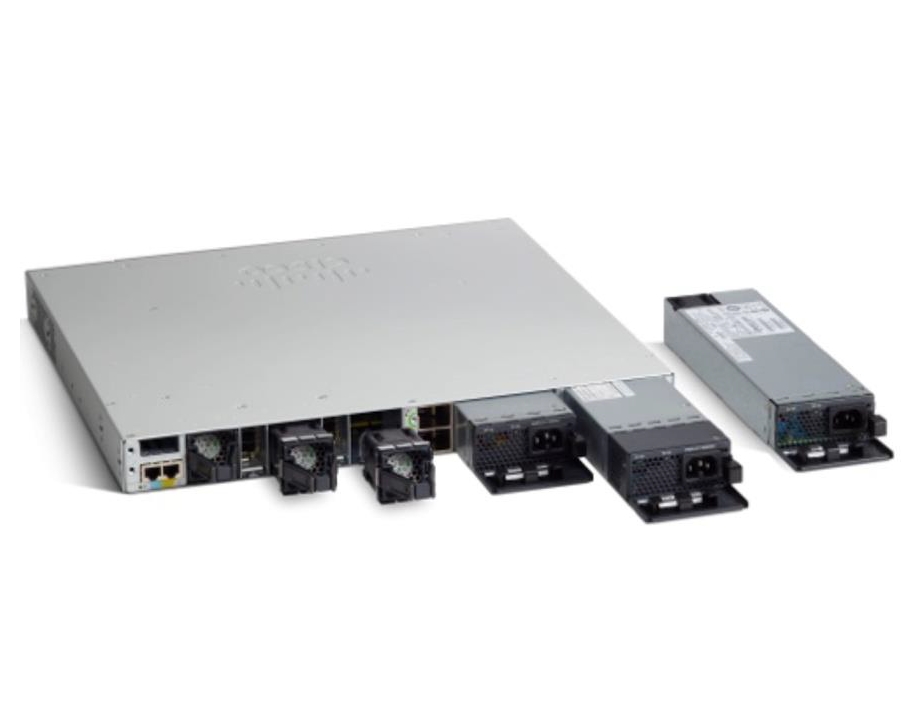

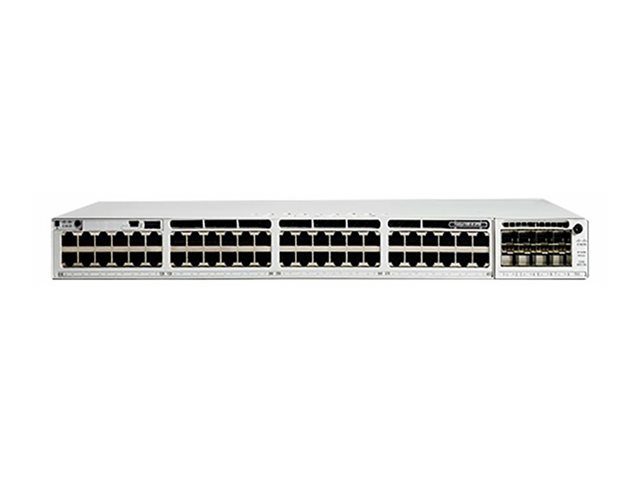

Cisco Catalyst 9300 48-port data only - 0

Cisco Catalyst 9300 48-port data only - 1

Спецификации

Суич, тип
Fixed Port
Общ брой портове
48
Основни портове, тип
48x10/100/1000Base-T
Power Over Ethernet (PoE)
No
Гаранция, м.
99 месеца
Uplink портове
0
Свободни (10GB) слотове
1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
Управляем (Managed)
SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Паралелна работа (Stackable)
Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
Fans
Three field-replaceable fans
Захранване
Dual redundant power supplies, Default power supply: PWR-C1-350WAC
Routing
Layer 3 Advanced
Памет (Flash, RAM)
Flash memory: 16 GB; RAM: 8 GB DRAM
Капацитет за маршрутизиране/превключване, Gbps
256 Gbps
Пропускателна способност, Mpps
190.48 Mpps
MAC адреси
32000 MAC address table size
VLAN (брой, стандарти)
VLAN IDs: 4000; IEEE 802.1Q VLAN
QoS
Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
L3 мрежови стандарти
Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4
IPv6 functionality
IPv6 routing; IPv6 addressing; Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration; IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Сигурност
Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
Други
Задължителен е минимум 3-годишен лиценз DNA Advantage.
