CISCO

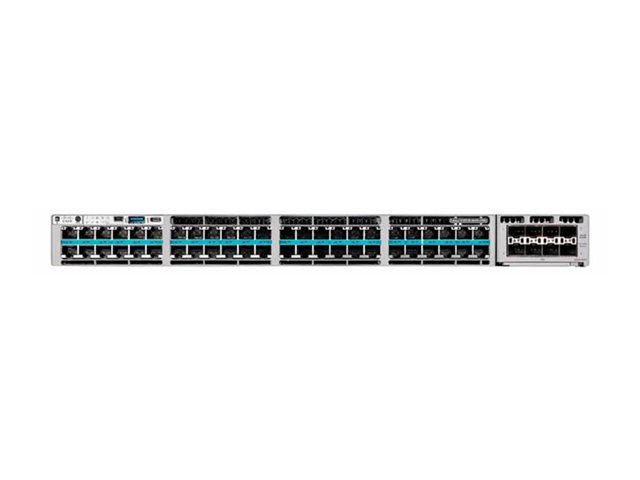

CISCO Catalyst 9300 48-port 8xmGig+40x5G 90W UPOE+ Network Ess

C9300X-48HXN-E
Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
Безплатна доставка
€13,34300 / 26 09664 лв.
Поръчка по телефона
Изпрати запитване
Добави в любими
BUILT-IN RESILIENCYHigh-end fixed switching for Software-Defined Access, App hosting, high availability, assurance, and smart buildingsHIGH PERFORMANCE AND SCALABILITYSupport for high-density 10G and 40G uplinks with up to 480 Gbps of stacking bandwidth for robust performance and network expansion.ADVANCED SECURITYFeatures like Encrypted Traffic Analytics (ETA) and Cisco TrustSec provide comprehensive security, including Network Access Control (NAC) capabilities.UP TO 1TB OF STACKING BANDWIDTHWith Stackwise-1T, Catalyst 9300 switches are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture.CLOUD MANAGEMENT AND MONITORINGCloud management and monitoring provides the ability to manage or view Catalyst 9300 switch statistics, configuration, and troubleshooting capabilities in Meraki dashboard.
Спецификации
  • Суич, тип
    Modular
  • Общ брой портове
    48
  • Основни портове, тип
    8x 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40x 5G Multigigabit (5G/2.5G/1G/100M)
  • Power Over Ethernet (PoE)
    Cisco UPOE+ (90W per port) & IEEE 802.3bt type4 on 21 ports (24-port and 48-port switch)
  • Гаранция, м.
    99 месеца
  • Uplink портове
    Modular Uplinks
  • Свободни (10GB) слотове
    -
  • Управляем (Managed)
    Cloud management and monitoring; WebUI
  • Паралелна работа (Stackable)
    Designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports.
  • Fans
    Three field-replaceable fans and support (N+1) redundancy.
  • Захранване
    Redundant; Default AC power supply: 1100W AC
  • Routing
    High-Performance IP routing; Total routed ports: 448
  • Памет (Flash, RAM)
    DRAM: 8 GB; Flash: 16 GB; Packet buffer per SKU: 16 MB buffer for 24-or 48-port Gigabit Ethernet models
  • Капацитет за маршрутизиране/превключване, Gbps
    960 Gbps, Switching capacity with stacking: 1960 Gbps
  • Пропускателна способност, Mpps
    714.24 Mpps; Forwarding rate with stacking: 1458.24 Mpps
  • MAC адреси
    32 000
  • VLAN (брой, стандарти)
    VLAN IDs: 4094; IEEE 802.1Q VLAN
  • QoS
    QoS scale entries: 5 120; Superior QoS (802.1p Class of Service (CoS), DSCP, SRR, CIR)
  • L2 мрежови стандарти
    IEEE 802.3 ab/z/bz/an/x
  • L3 мрежови стандарти
    IEEE 802.1D, RMON I and II standards, SNMPv1, v2c, and v3
  • IPv6 functionality
    IPv6 routing entries: 16 000
  • Сигурност
    ETA, SUDI, AES-256 MACsec encryption, IPsec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Cloud Security: Umbrella DNS Integration, ASAc
  • Други
    Network Essentials
