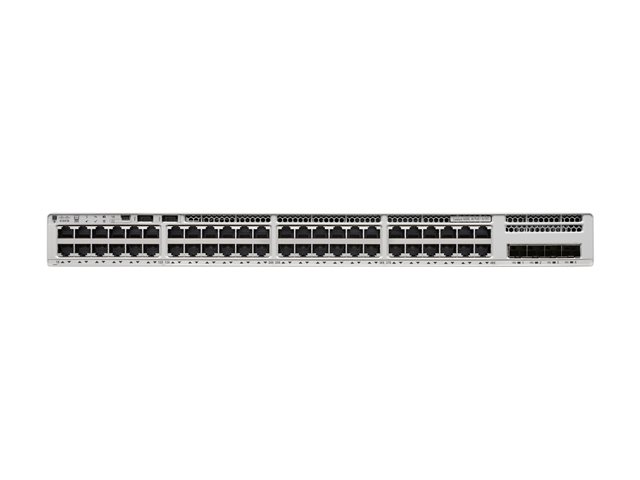

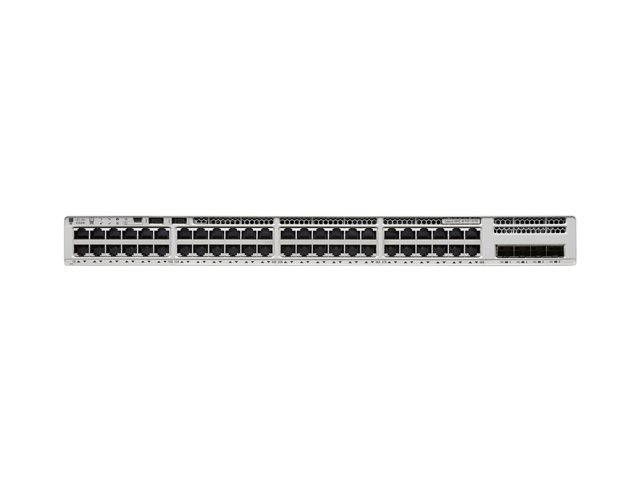

Cisco Catalyst 9200L 48-port Partial PoE+ - 0

Cisco Catalyst 9200L 48-port Partial PoE+ - 1

Спецификации

Суич, тип
Fixed Port
Общ брой портове
52
Основни портове, тип
48x10/100/1000Base-T
Power Over Ethernet (PoE)
IEEE 802.3at PoE+ (up to 30W per port), Partial PoE+; Available PoE Power: 370W (Default primary power supply - PWR-C5-600WAC), 740W with Optional secondary power supply - PWR-C5-600WAC
Гаранция, м.
99 месеца
Uplink портове
4x10GBase-T
Свободни (10GB) слотове
No
Управляем (Managed)
SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Паралелна работа (Stackable)
Cisco StackWise-80 stacking ports: copper-based Cisco StackWise cabling, Stacking hardware (C9200L-STACK-KIT=), Supported stack members: Other C9200L models with same license level (8 Number of members)
Fans
Fixed redundant
Захранване
Dual field-replaceable power supplies, Default primary AC power supply: PWR-C5-600WAC
Routing
Layer 3 Advanced
Памет (Flash, RAM)
Flash memory: 4 GB; RAM: 2 GB DRAM
Капацитет за маршрутизиране/превключване, Gbps
176 Gbps
Пропускателна способност, Mpps
261.9 Mpps
MAC адреси
16000 MAC address
VLAN (брой, стандарти)
VLAN IDs: 1024; IEEE 802.1Q VLAN
QoS
Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x
L3 мрежови стандарти
IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
IPv6 functionality
IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting
Сигурност
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Други
Задължителен е минимум 3-годишен лиценз DNA Essentials.
