Спецификации

Процесор
AMD
Чипсет
AMD A620A
Форм фактор
Mini-ITX Form Factor; 17.0cm x 17.0cm
Тип памет
DDR
Графична карта
Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports.
Интерфейси
iTE® I/O Controller Chip
Конектори

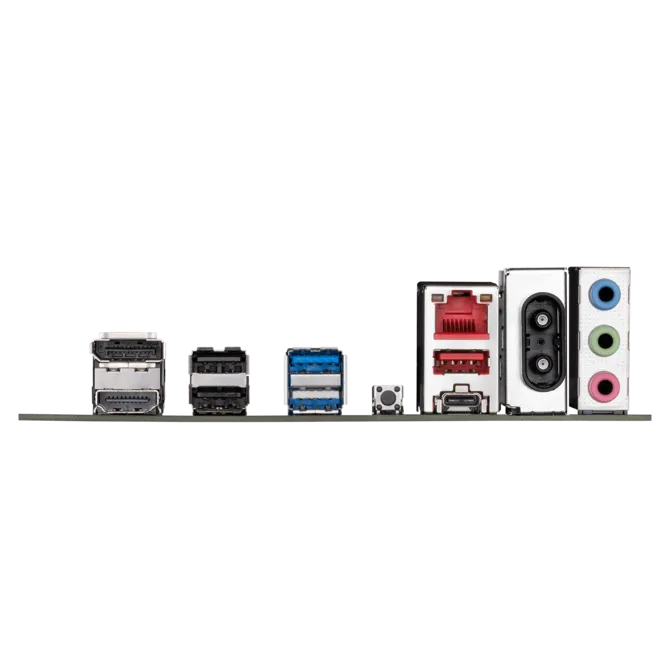

1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;1 x addressable RGB Gen2 LED strip header;1 x RGB LED strip header;1 x M.2 Socket 3 connector;2 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x speaker header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x reset jumper1 x Clear CMOS jumper;1 x chassis intrusion header;Back Panel Connectors;1 x DisplayPort (Note);1 x HDMI port (Note);1 x USB Type-C® port, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 2 Type-A port (red);1 x USB 3.2 Gen 1 port;3 x USB 2.0/1.1 ports;1 x Q-Flash Plus button;1 x RJ-45 port;2 x antenna connectors (2T2R);3 x audio jacks
Вградено аудио
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Слотове
1 x PCI Express x16 slot, integrated in the CPU:;- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD
Интерфейс Serial ATA
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:;- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devices;RAID 0 and RAID 1 support for SATA storage devices
Вграден LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
