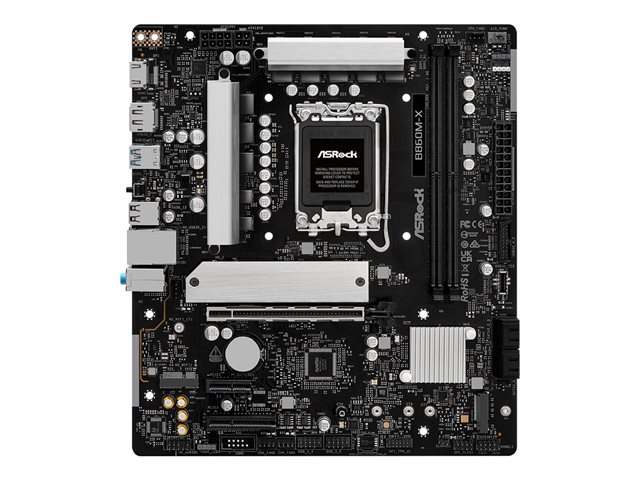

ASROCK B860M-X LGA1851 DDR5 mATX MB

Name: ASROCK B860M-X LGA1851 DDR5 mATX MB
Brand: ASROCK
SKU: e014ce72-c150-11f0-aed7-0ab9880948b1
Price: 120 EUR
Availability: InStock

B860M-X

The ASRock B860M-X motherboard is designed for performance and efficiency, accommodating Intel Core Ultra processors from Series 2. This micro ATX form factor motherboard supports DDR5 SDRAM with a maximum speed of up to 9066 MHz when overclocked, ensuring high-speed data transfer and enhanced multitasking capabilities. Equipped with two DIMM slots, it allows for dual-channel memory architecture and is compatible with Intel Extreme Memory Profiles (XMP) 3.0 and AMD EXPO technology to optimize memory performance. For ample connectivity, the B860M-X features multiple interfaces including USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, HDMI, and 2.5 Gigabit Ethernet for swift data transmission. The audio capabilities are supported by a high definition audio card with an 8-channel audio codec from Realtek. This motherboard integrates advanced features such as ASRock Instant Flash, a BIOS FlashBack button, and 7+1+1+1+1 Power Phase Design, all housed within a sturdy aluminum heatsink design to manage thermal performance effectively.

Безплатна доставка

€120⁰⁰ / 234⁷⁰ лв.

Robust connectivity optionsThe ASRock B860M-X offers extensive connectivity with multiple USB ports, including USB 3.2 Gen 1 and USB-C 3.2 Gen 2x2, as well as HDMI and DisplayPort outputs to provide seamless integration with various devices.Efficient thermal managementThis motherboard features an aluminum heatsink design that enhances thermal performance, ensuring stable operation during demanding tasks while optimizing overall system efficiency.Advanced memory supportCompatible with DDR5 SDRAM and Intel Extreme Memory Profiles (XMP) 3.0, the B860M-X enables high-speed memory operation, providing exceptional performance for multitasking and demanding applications.Enhanced audio experienceWith a Realtek ALC897 audio codec, the high definition audio card provides an 8-channel output, delivering a high-quality sound experience for gaming and multimedia applications.

Спецификации

Процесор
Intel
Сокет на процесора
LGA1851 Socket
Чипсет
Intel B860
Форм фактор
Micro ATX
Гаранция, месеци
36 месеца
Макс. брой инсталирани процесори
1
Максимално количество на инсталирана памет
128 GB
Тип памет
DDR
Скорост/честота на паметта
9066 MHz (O.C.), 6400 MHz, 6800 MHz (O.C.)
Слотове памет
2
Форм фактор на паметта
DIMM 288-pin
Предлага метод за проверка за грешки
Non-ECC
Характеристики на паметта
Two DDR Channels
Небуферирана
XMP 3.0
Интерфейси
1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x DisplayPort 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack
DisplayPort
1
USB 3.2
3 (USB 3.2 (type A))
Вградено аудио
HD Audio (8-channel)
Аудио кодек
Realtek ALC897
Аудио интерфейс
3 (3.5 мм мини жак)
Слотове
1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 1 x PCIe 4.0 x4 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot)
Слотове PCI-E X16
1
Интерфейс Serial ATA
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 PCIe 4.0 -connectors: 1 x Hyper M.2
Вграден LAN
Dragon RTL8125BG
Височина
218 мм
Ширина
24.4 cm
Дълбочина
21.8 cm
Други
BIOS FlashBack button, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ASRock POST Status Checker (PSC), 7+1+1+1+1 Power Phase Design, 6 Layer PCB, aluminium heatsink design, chipset heatsink, ASRock Polychrome RGB, DIY Friendly Design, CUDIMM support
