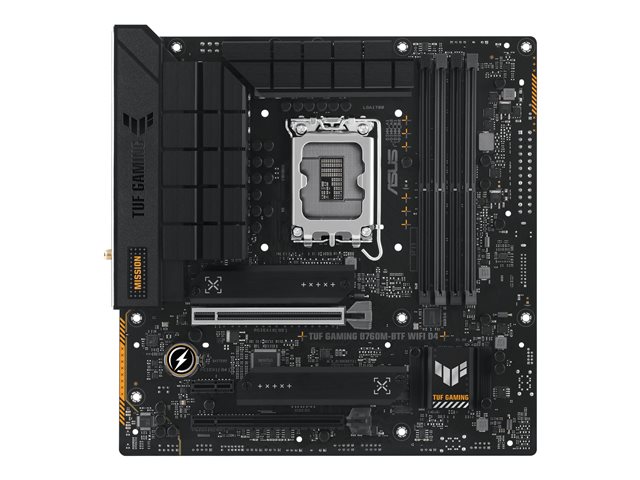

Versatile expansion optionsMultiple PCIe slots support various configurations, including PCIe 5.0 x16 and PCIe 4.0 x16, allowing for the addition of graphics cards and other devices to meet performance needs.High-performance networkingEquipped with 2.5 Gigabit Ethernet and Wi-Fi 6, this motherboard provides users with faster and more reliable network connectivity, enhancing online gaming and streaming experiences.Superior audio qualityThe high-definition audio output supports 7.1-channel sound, delivering an immersive audio experience for gaming and media playback.Enhanced cooling and protection featuresFeatures like ASUS Fan Xpert 2+ and ESD guards help maintain optimal system temperatures and protect components from electrical surges, ensuring long-lasting performance.Robust memory supportWith four DIMM slots, this motherboard supports dual-channel memory architecture and Intel Extreme Memory Profiles (XMP), enabling users to tailor memory configurations for improved performance.
Спецификации
- ПроцесорIntel
- Сокет на процесораLGA1700 Socket
- ЧипсетIntel B760
- Макс. брой инсталирани процесори1
- Максимално количество на инсталирана памет128 GB
- Тип паметDDR4
- Скорост/честота на паметта5333 MHz (O.C.), 5066 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz (O.C.), 4600 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4000 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3466 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
- Предлага метод за проверка за грешкиNon-ECC
- Интерфейси1 x HDMI 1 x DisplayPort 1 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 1 2 x USB 3.2 Gen 1 4 x USB 2.0
- Вградено аудиоHigh Definition Audio (7.1-channel)
- Слотове1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 1 x M.2 socket (2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
- Интерфейс Serial ATASATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2
- Вграден LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
- Ширина24.4 cm
- Дълбочина24.4 cm
- ДругиIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, CrashFree BIOS 3, ASUS EZ DIY, Preboot eXecution Environment (PXE), ASUS DIGI+ VRM, ASUS Fan Xpert 2+, TUF LANGuard, ESD Guards, ASUS Overvoltage Protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, Clear CMOS Button, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, audio jack detect technology, jack retasking
