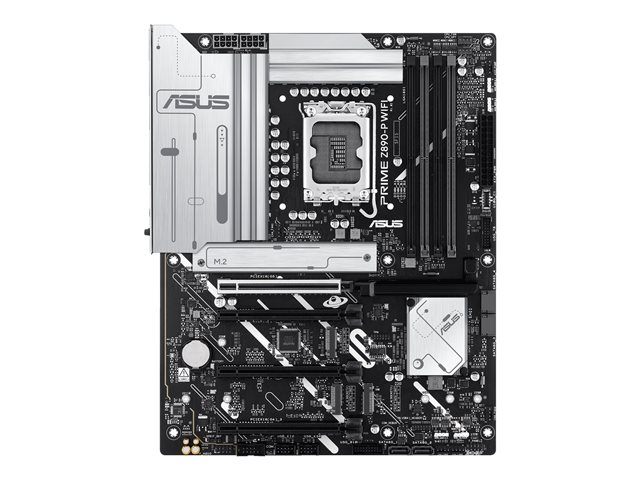

Versatile connectivityThe ASUS PRIME Z890-P WIFI motherboard offers an extensive array of connectivity options, including USB 3.2, Thunderbolt 4, HDMI, and DisplayPort. This allows users to connect various peripherals and external devices seamlessly, enhancing productivity and entertainment.Enhanced performanceDesigned to support Intel Core Ultra processors, this motherboard utilizes an Intel Z890 chipset to provide stable and efficient performance. The combination of advanced technologies ensures that demanding applications run smoothly, making it ideal for gamers and professionals.Robust expansion capabilitiesWith multiple PCIe 5.0 x16 slots and four M.2 slots, the motherboard supports a range of expansion options. This design allows users to tailor their systems with additional graphics cards and storage solutions according to their needs.High definition audioEquipped with high definition audio output, the PRIME Z890-P provides a superior audio experience for gaming and media consumption. Supported by audio standards, it delivers clear sound and rich tones that enhance overall immersion.Intuitive BIOS managementThe ASUS UEFI BIOS includes features like ASUS EZ Flash and CrashFree BIOS 3, which simplify the process of managing system settings and updates. This user-friendly interface caters to both novice and experienced users.
Спецификации
- ПроцесорIntel
- Сокет на процесораLGA1851 Socket
- ЧипсетIntel Z890
- Форм факторATX Form Factor, 30.5 cm x 24.4 cm
- Гаранция, месеци36 месеца
- Макс. брой инсталирани процесори1
- Максимално количество на инсталирана памет192 GB
- Тип паметDDR
- Скорост/честота на паметта4333 MHz (O.C.)
- Предлага метод за проверка за грешкиNon-ECC
- Графична карта1 x DisplayPort;1 x HDMITM port;1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs
- Интерфейси1 x DisplayPort 1 x HDMI 1 x Thunderbolt 4/DisplayPort/USB4 1 x LAN (2.5Gigabit Ethernet) 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 2 x aerial 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack
- КонекториFan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU;Power connector;Storage related;4 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 10-1 pin Front Panel System header;1 x Thunderbolt™ (USB4®) header
- Вградено аудиоHD Audio (8-channel)
- Слотове1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) 1 x M.2 socket (2280 M.2 slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2280/22110 M.2 Key M slot)
- Интерфейс Serial ATASATA-600 -connectors: 6 x 7pin Serial ATA PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
- Вграден LAN802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet
- Ширина30.5 cm
- Дълбочина24.4 cm
- ДругиIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, LANGuard, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack button, BIOS FlashBack LED, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, CrashFree BIOS 3, Preboot eXecution Environment (PXE), 14+1+2+1 Phase Power Design, chipset heatsink, AI Networking II, AI Cooling II, NPU Boost, 6 Layer PCB, PCIe Slot Q-Release
