Спецификации
- Суич, типFixed Port

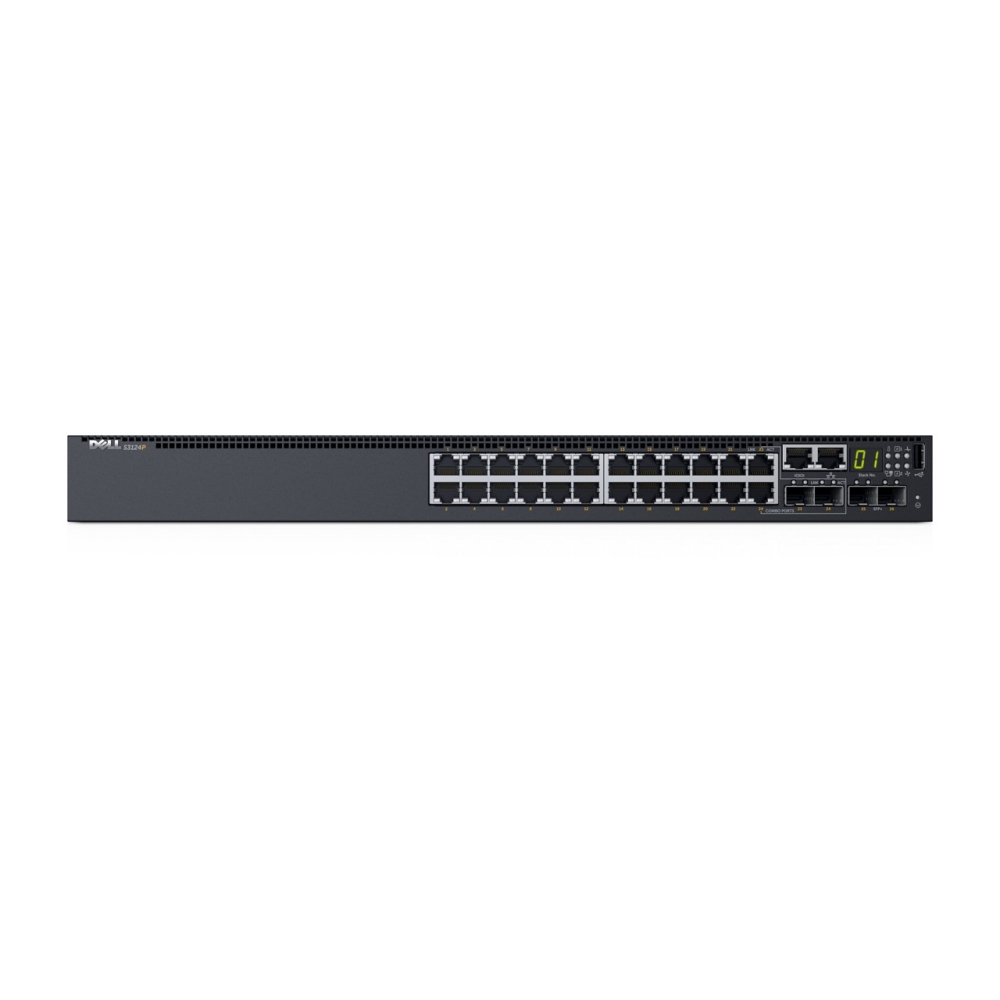

- Общ брой портове24x RJ45 auto-sensing (1Gb/100Mb/10Mb) PoE+ fixed ports
- Основни портове, тип10GE SFP + dedicated ports
- Power Over Ethernet (PoE)PoE+ standard
- Гаранция, м.12 месеца
- Uplink портове2x10GE SFP

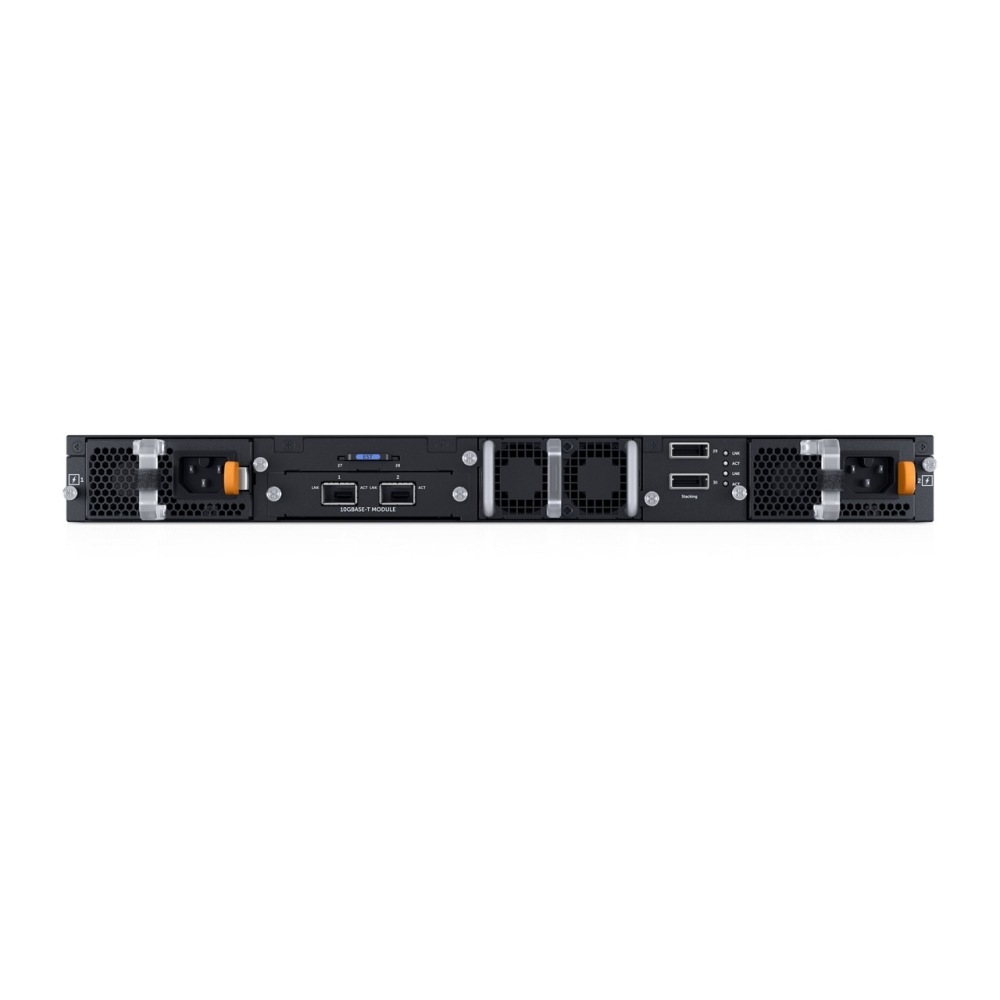

- Свободни (10GB) слотовеHot swappable expansion module supporting dual-port SFP+ or dual-port 10GBaseT
- Управляем (Managed)1 RJ45 console/management port with RS232 signaling
- Паралелна работа (Stackable)Yes
- FansRedundant variable speed fans
- Захранване1x 715 W PSU included
- RoutingLayer 3 Advanced
- Памет (Flash, RAM)256 MB
- Капацитет за маршрутизиране/превключване, Gbps212 Gbps
- Пропускателна способност, Mpps158 Mpps
- MAC адреси56K (80K in L2 scaled mode)
- VLAN (брой, стандарти)802.1Q VLAN Tagging, Double VLAN Tagging, GVRP, 802.3ac Frame Extensions for VLAN Tagging
- QoS8 priority queues per port
- L2 мрежови стандартиIEEE compliance: 802.1AB, 802.1D, 802.1p, 802.1Q, 802.1Qbb, 802.1Qaz, 802.1s, 802.1w, 802.1x, 802.1x-2010, 802.3ab, 802.3ac, 802.3ad, 802.1ax, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z
- IPv6 functionalityAll protocols, including IPv4 and IPv6
- СигурностTACACS+ accounting and RADIUS
- Други1x RJ45 console/management port with RS232 signaling (RJ-45 to female DB-9 connector cable included), Out-of-band management port (10/100/1000BASE-T) USB (Type A) port for configuration via USB flash drive
