BUILT-IN RESILIENCYHigh-end fixed switching for Software-Defined Access, App hosting, high availability, assurance, and smart buildingsHIGH PERFORMANCE AND SCALABILITYSupport for high-density 10G and 40G uplinks with up to 480 Gbps of stacking bandwidth for robust performance and network expansion.ADVANCED SECURITYFeatures like Encrypted Traffic Analytics (ETA) and Cisco TrustSec provide comprehensive security, including Network Access Control (NAC) capabilities.UP TO 1TB OF STACKING BANDWIDTHWith Stackwise-1T, Catalyst 9300 switches are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture.CLOUD MANAGEMENT AND MONITORINGCloud management and monitoring provides the ability to manage or view Catalyst 9300 switch statistics, configuration, and troubleshooting capabilities in Meraki dashboard.
Спецификации
- Суич, типFixed Port
- Общ брой портове48
- Основни портове, тип48x10/100/1000Base-T
- Power Over Ethernet (PoE)IEEE 802.3at PoE+ Standard. Available PoE Power: 822W, Cisco UPOE extends the IEEE PoE+ standard to double the power per port to 60 watts.
- Гаранция, м.99 месеца
- Uplink портове0
- Свободни (10GB) слотове1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
- Управляем (Managed)SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP

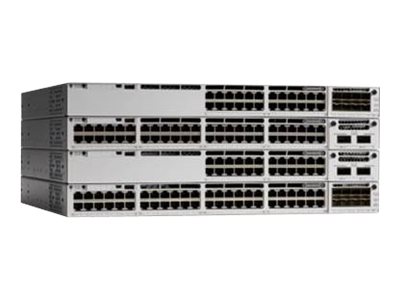

- Паралелна работа (Stackable)Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
- FansThree field-replaceable fans

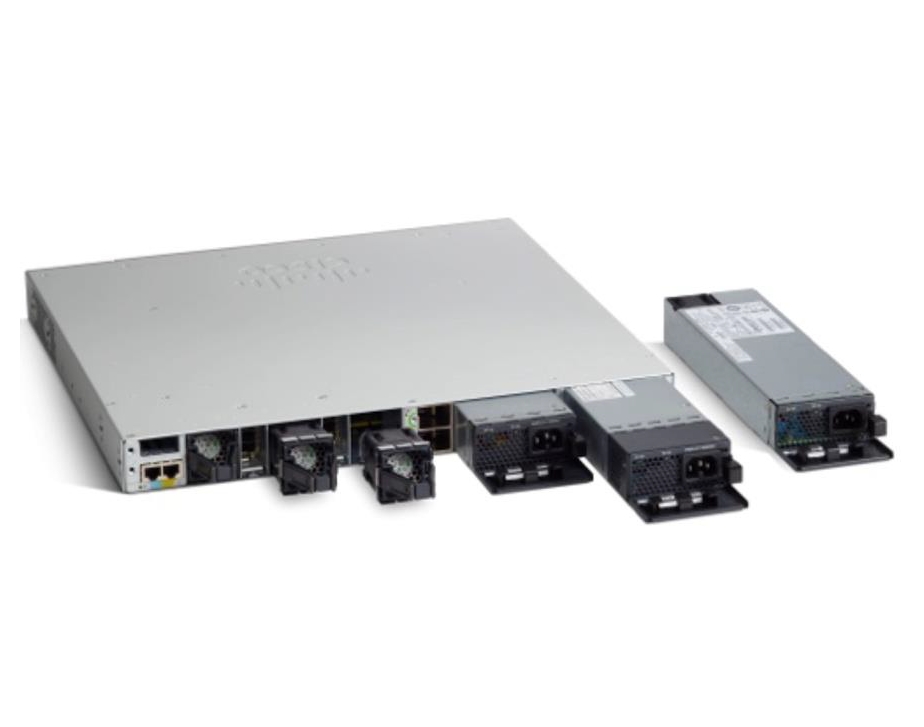

- ЗахранванеDual redundant power supplies, Default power supply: PWR-C1-1100WAC
- RoutingLayer 3 Advanced
- Памет (Flash, RAM)Flash memory: 16 GB; RAM: 8 GB DRAM
- Капацитет за маршрутизиране/превключване, Gbps256 Gbps
- Пропускателна способност, Mpps190.48 Mpps
- MAC адреси32000 MAC address table size
- VLAN (брой, стандарти)VLAN IDs: 4000; IEEE 802.1Q VLAN
- QoSGranular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
- L2 мрежови стандартиIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
- L3 мрежови стандартиIP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
- IPv6 functionalityIPv6 routing; IPv6 addressing; Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration; IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- СигурностEncrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
- ДругиЗадължителен е минимум 3-годишен лиценз DNA Essentials.
