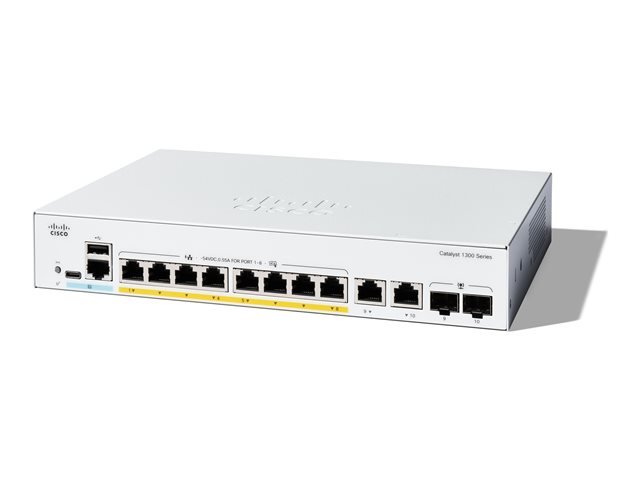

SWITCH PORTS8 ports 10/100/1000 + 2x 1GE copper/SFP combo (total PoE power budget: 67W, PoE, PoE+)SIMPLEIntuitive Cisco Business mobile app, local web interface, and Cisco Business Dashboard allows you to set up, manage, and monitor the switch, with step-by-step instructions to install and configure your network in minutes - no IT expertise requiredENHANCED SECURITYIP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networksENERGY EFFICIENTOptimizes power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select modelsPERFECT FOR SMALL BUSINESSRequires no subscription or licenses to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Спецификации
- Суич, типFixed Port
- Общ брой портове10
- Основни портове, тип8x 10/100/1000Base-T PoE+ ports with 60W power budget
- Power Over Ethernet (PoE)PoE+ (60W); 8 ports; 802.3at PoE+, 802.3af
- Гаранция, м.60 месеца
- Uplink портове2x SFP/ RJ-45 combo
- Свободни (10GB) слотове-
- Управляем (Managed)Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc.
- Паралелна работа (Stackable)-
- FansFanless
- Захранване100-240V 50-60 Hz, external
- RoutingDynamic Layer 3 routing
- Памет (Flash, RAM)512 MB (Flash), 1 GB DDR4 (DRAM), 1.5 MB (Packet buffer)
- Капацитет за маршрутизиране/превключване, Gbps20 Gbps
- Пропускателна способност, Mpps14.88 Mpps
- MAC адреси16 000 addresses
- VLAN (брой, стандарти)Support for up to 4093 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Management VLAN; Private/Guest/unauthenticated/Auto surveillance/CPE/Voice/Dynamic/Multicast TV VLAN
- QoS8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP
- L2 мрежови стандартиIEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
- IPv6 functionalityIPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD
- СигурностSSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; ACLs
