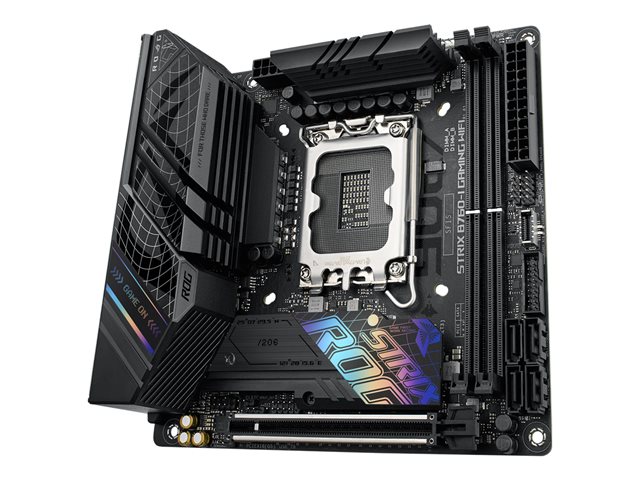

All-round performanceBulking up where it counts, the ROG Strix B760-I bears an octet of power stages mounted with a hefty cooling array to give you all the fury of Raptor Lake. To pack on the FPS, the PCIe 5.0 slot is primed for the mightiest graphics card you can fit your chassis, and the memory slots can handle dizzying DDR5 speeds.Leading connectivityMassive throughput flows through the ROG Strix B760-I via advanced networking adapters and high-bandwidth USB connectors, allowing you to rip through games with no interference, and crystal-clear on-board audio keeps you immersed in the experience.Play in styleThe shrouds and PCB of the Strix B760-I pair well with most products from the diverse ROG ecosystem, all while making your build distinct with a dash of polychromatic contrast.Software utilitiesCustomize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.

Спецификации

Процесор
Intel
Сокет на процесора
LGA1700 Socket
Чипсет
Intel B760
Макс. брой инсталирани процесори
1
Максимално количество на инсталирана памет
64 GB
Тип памет
DDR
Скорост/честота на паметта
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7466 MHz (O.C.), 7600 MHz (O.C.)
Предлага метод за проверка за грешки
Non-ECC
Интерфейси
1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 3 x USB 2.0 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 2 x aerial 1 x audio line-out - mini-jack 1 x LAN (2.5Gigabit Ethernet)
Вградено аудио
HD Audio (8-channel)
Аудио кодек
SupremeFX (S1220A)
Слотове
1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Интерфейс Serial ATA
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2
Поддръжка на RAID
Intel Rapid Storage Technology
Вграден LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Ширина
17 cm
Дълбочина
17 cm
Други
Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, Savitech SV3H712 amplifier, audio jack detect technology, jack retasking, Preboot eXecution Environment (PXE), SupremeFX Shielding technology, Windows 11 compatible, CrashFree BIOS 3, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, ASUS EZ DIY, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, 8+1 Phase Power Design, 8 Layer PCB, Water Pump Header, DIY Friendly Design
