Спецификации

Процесор
Intel
Чипсет
Intel® Z890 Chipset
Форм фактор
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Гаранция, месеци
36 месеца
Тип памет
DDR
Графична карта
1 x HDMI™ port**;2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***;* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates;** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.;*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.;**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.;***** VGA resolution support depends on processors' or graphic cards' resolution.;******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Интерфейси

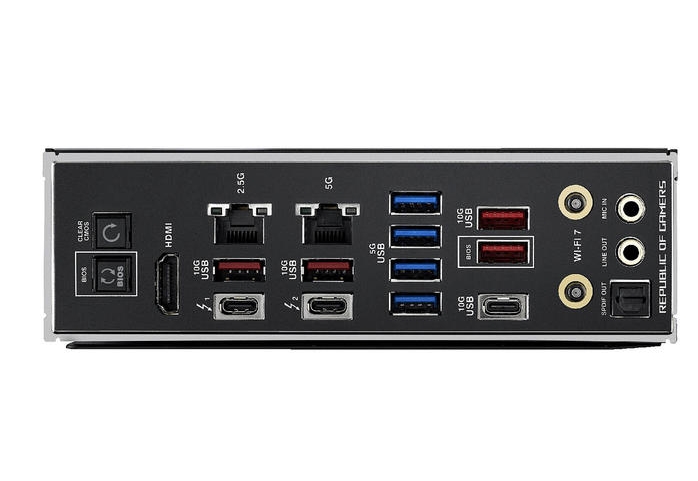

1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;1 x Realtek 5Gb Ethernet port;2 x Gold-plated audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button ;1 x Clear CMOS button;Rear USB (Total 11 ports);2 x Thunderbolt™ 4 ports (2 x USB Type-C®);5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A);Front USB (Total 10 ports);1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**;1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A;** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A;2 x Thunderbolt™ 4 USB Type-C® ports;5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®);4 x USB 5Gbps ports (4 x Type-A)
Конектори
Fan and Cooling Related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;1 x W_PUMP+ headers;Power Related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;1 x 8-pin PCIe Power connector;Storage Related ;6 x M.2 slots (Key M) ;4 x SATA 6Gb/s ports;1 x SlimSAS connector ;USB ;1 x USB 20Gbps connector (supports USB Type-C® ) ;1 x USB 10Gps connector (supports USB Type-C® ) ;2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Alteration PCIe mode switch;1 x FlexKey button ;1 x Front Panel Audio header (F_AUDIO);1 x ReTry button;1 x Start button;1 x 10-1 pin System Panel header;1 x Thermal Sensor header;1 x Thunderbolt™ (USB4®) header*;* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.
Вградено аудио
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel";Audio Features ;- SupremeFX Shielding Technology;- ESS® ES9219 QUAD DAC;- Gold-plated audio jacks;- Rear optical S/PDIF out port;- Premium audio capacitors;* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Слотове
Intel® Core™ Ultra Processors (Series 2)*;-1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x1 slot**;When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Интерфейс Serial ATA
Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2) *-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);-M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**;-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® Z890 Chipset;-M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) ;-M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);-4 x SATA 6Gb/s ports ;SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. ;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5;** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
M.2 слот
6 M.2 slots (Key M)
Вграден LAN
1 x Intel® 2.5Gb Ethernet;1 x Realtek 5Gb Ethernet;ASUS LANGuard
